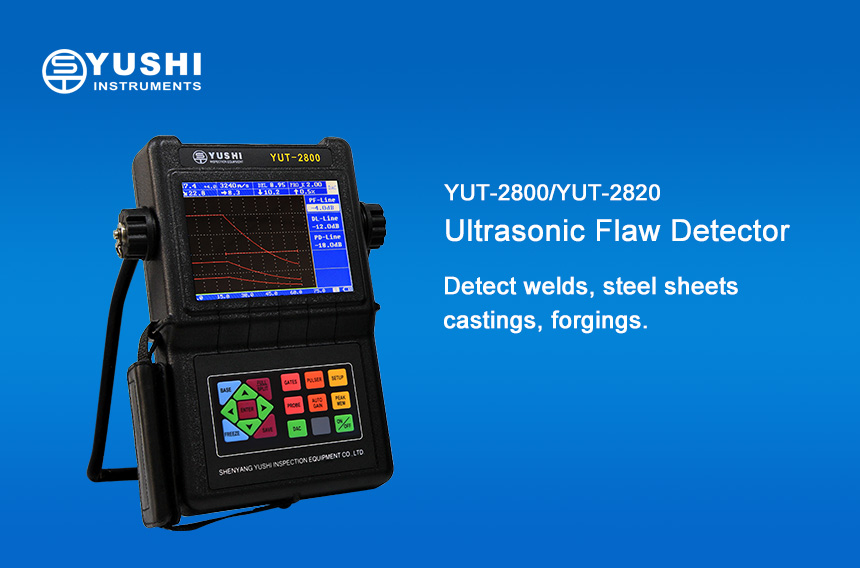

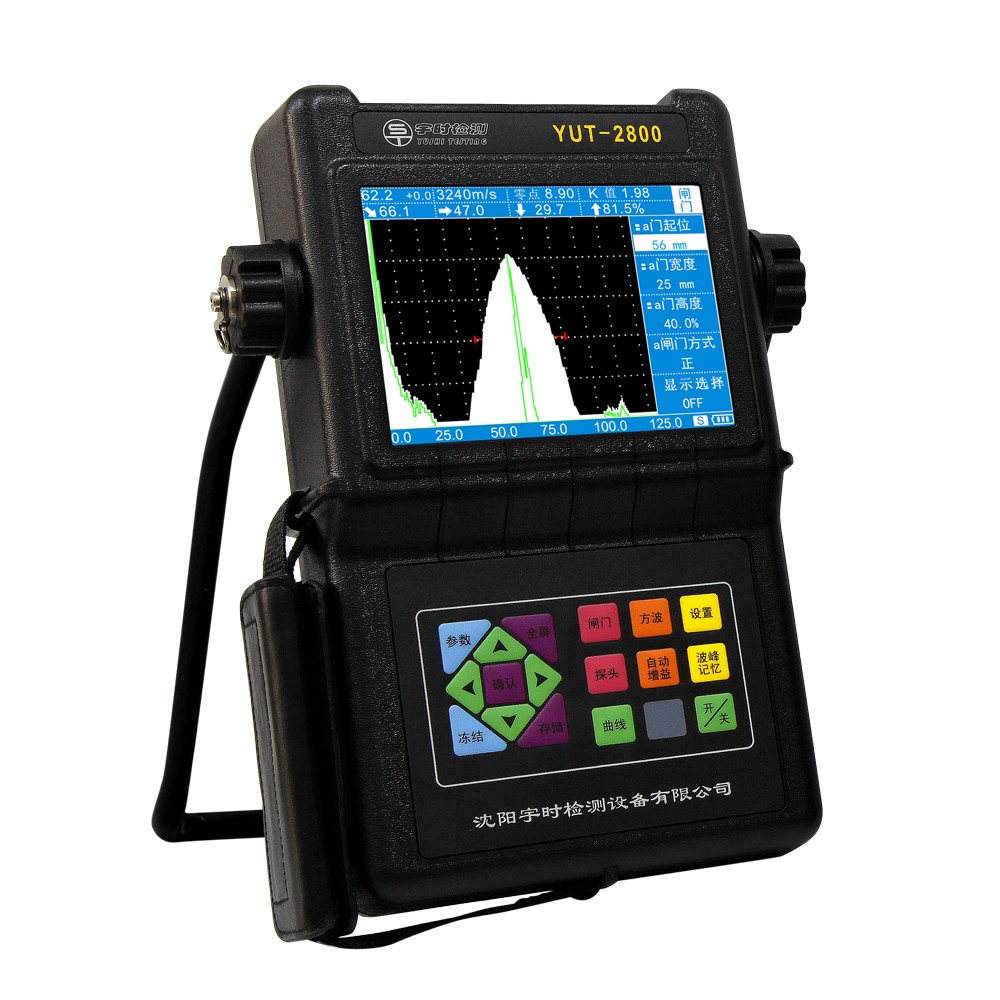

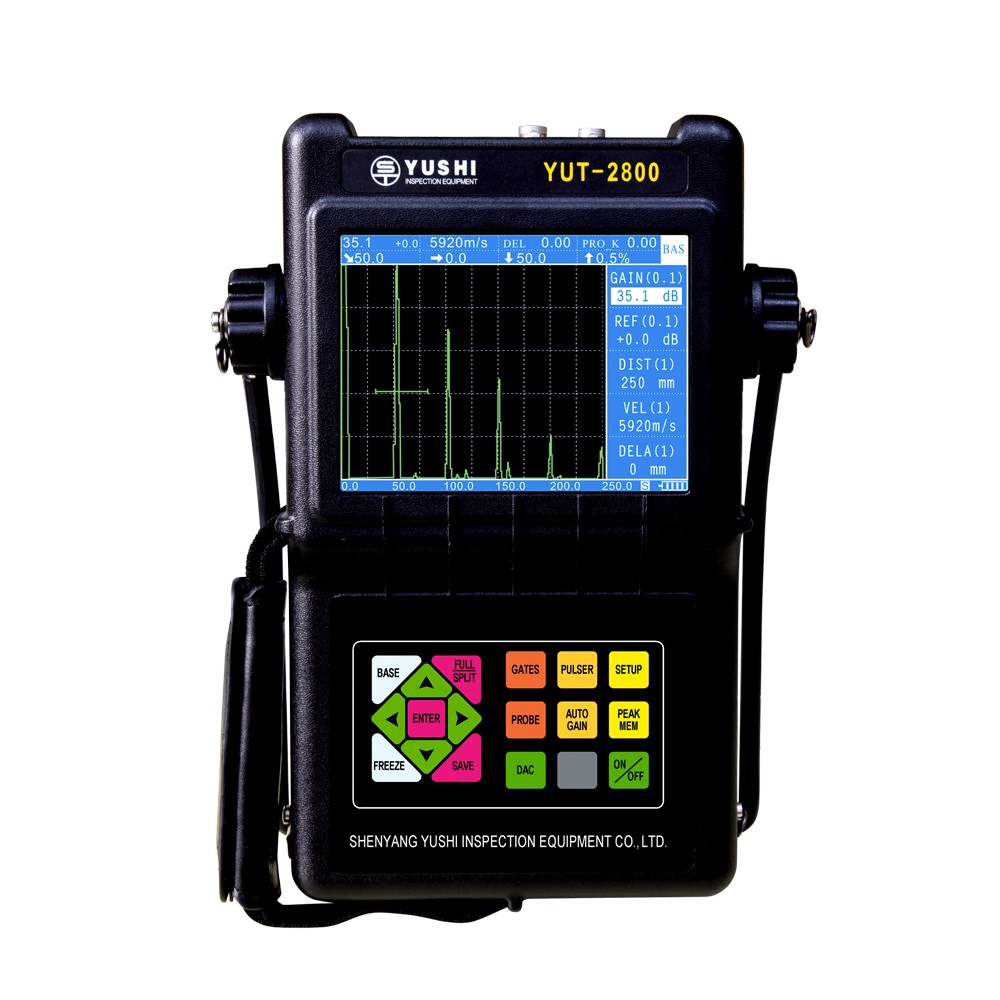

YUT-2800 Series Digital Ultrasonic Flaw Detector

Model:YUT-2800 / YUT-2820
Measuring Range:0-4500 mm
Vertical linearity error:≤5%
Horizontal linearity error:≤0.5%
Surplus sensitivity:≥55dB (depth:200mm Φ2 flat bottom hole)
Size :270mmX190mmX60mm
Weight :2Kg(Battery included)
Application::??Electric Power Industry, Petrochemical, Boiler Pressure Vessel, Steel Structure, Military Industry, Aerospace, Railway Transportation, Automobile, Machinery and other fields of Ultrasonic Flaw Detection.

Instruction Book Download

Brochure Download



圖片關鍵詞

圖片關鍵詞

圖片關鍵詞

圖片關鍵詞

圖片關鍵詞


Main Features
?Rugged&durable housing: designed for harsh environment.
?Full screen: Entire screen is covered by echo display area.
?Mass Storage: 1000 datasets can be stored.
?Free from zero calibration, and substrate thickness can be measured through coating.
?Peak memory: capture peak signal amplitude.
?Automatic gain
?Language: Chinese, English
?Adjustable square wave


Comparisons



Model

YUT2600

YUT2620

YUT2800

YUT2820

True Color TFT LCD

DAC Curve Function

AVG Curve Function

χ

χ

Φ Value Calculation

χ

χ

Distance Compensation

χ

χ

Changeable Squared Ultrasonic Pulse

χ

χ

χ

Wide/Narrow Band Filters

χ

χ

Four Impedance Matching

χ

Data Logger

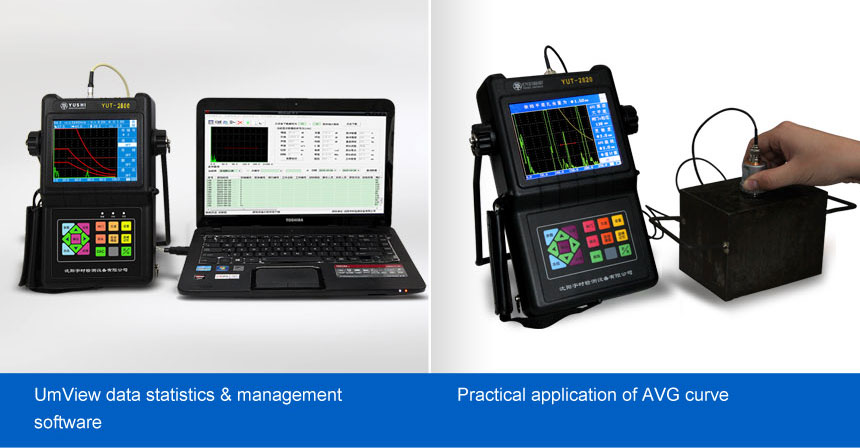

UtView Software



Specifications


Full Screen Display Function

The echo display area covers the entire screen

Bulk Storage

Up to 1000 data sets can be stored, including waveforms, curves and parameters, etc

Measuring Point

Peak Mode or Front Mode

Echo-echo Method

No need of zero calibration, the net thickness of the base material can be directly measured through the coating

Wave Crest Memory

Real time envelopes show the highest wave of the flaws and record the maximum value of the flaws, it is helpful to exact positioning and fast testing of the flaws

Automatic Gain

Automatically adjust the gain to the preset amplitude height

Alarming Function

Afferent echo/echo loss alarming

Solid Waveform

The solid waveform can enchancing the waveform visual contrast so the omission will hardly happen during the fast testing

Real-time Clock

Automatically record the date and time of the stored waveforms

Display Freezing

Catching the waveform and sound path data at any moment

Flaw Positioning

Real-time displaying the sound path S, horizontal height X, depth Y, and wave height H

Flaw Quantify

Real time display the dB difference value and sl quantitative value

Digital Inhibition

0-80%, increasing by 1%, not affecting the linearity and gain

Independent Measurement
Shutters

2 independent measurement gates, monitoring the echo amplitude and the sound path distance

DAC/AVG Curve Functions

Perfect DAC curve functions enable the curves to change along with the changes of the gain, sound path, and displacement

Transverse Wave Testing Method

When using transverse wave to detect flaws, the depths of the second and third waves are automatically calculated according to the slab thickness

Pulse Generator with Changeable Width and Scope

The voltage of the pulse generator can be changed between 50V to 400V continuously,The width of the pulse can be change d between 25ns to 1000ns continuously

Damping

Changed among 4 levels: 33/50/100/500Ω

Wave Signal Filter

Changed between 2 levels: 1-4MHz/0.5-15MHz

Repeating Frequency

Changed freely to avoid unreal signal

Languages

Chinese and English

Data Communication

Communicating with the computer via RS232 interface to transfer the waveform and data
